Yiming Machinery manufactures wedge wire screens, Johnson screens and other stainless steel screen products with custom specifications. We independently develop screen welding machines, providing one-stop service from equipment to finished products with stable quality & fast delivery.

View Products Custom Inquiry
10+
Years Industry Experience
500+
Cooperating Clients
30+
Covered Provinces
Custom
Custom Design & Production

About YIMING MACHINERY

Yiming Machinery is a professional manufacturer integrating stainless steel screen production and R&D of screen welding equipment. We have been deeply engaged in the screen industry for many years with mature production processes and complete technical teams.

Our main products include wedge wire screens (Johnson screens), wire wrapped screens, water well screens and other stainless steel screens, widely used in water treatment, petrochemical, food & beverage, mining and other industries. Meanwhile, we independently develop wedge wire screen welding machines, providing efficient and precise production solutions for industrial customers.

Adhering to the business philosophy of "Quality First, Custom Service", we provide full-cycle services including product design, equipment selection and finished delivery according to different working conditions.

Full Material Options

304 / 316L and other stainless steel grades

Precision Control

Minimum slot precision up to 0.02mm

Self-developed Machines

Independent R&D capability for welding equipment

Custom Available

Custom sizes based on drawings

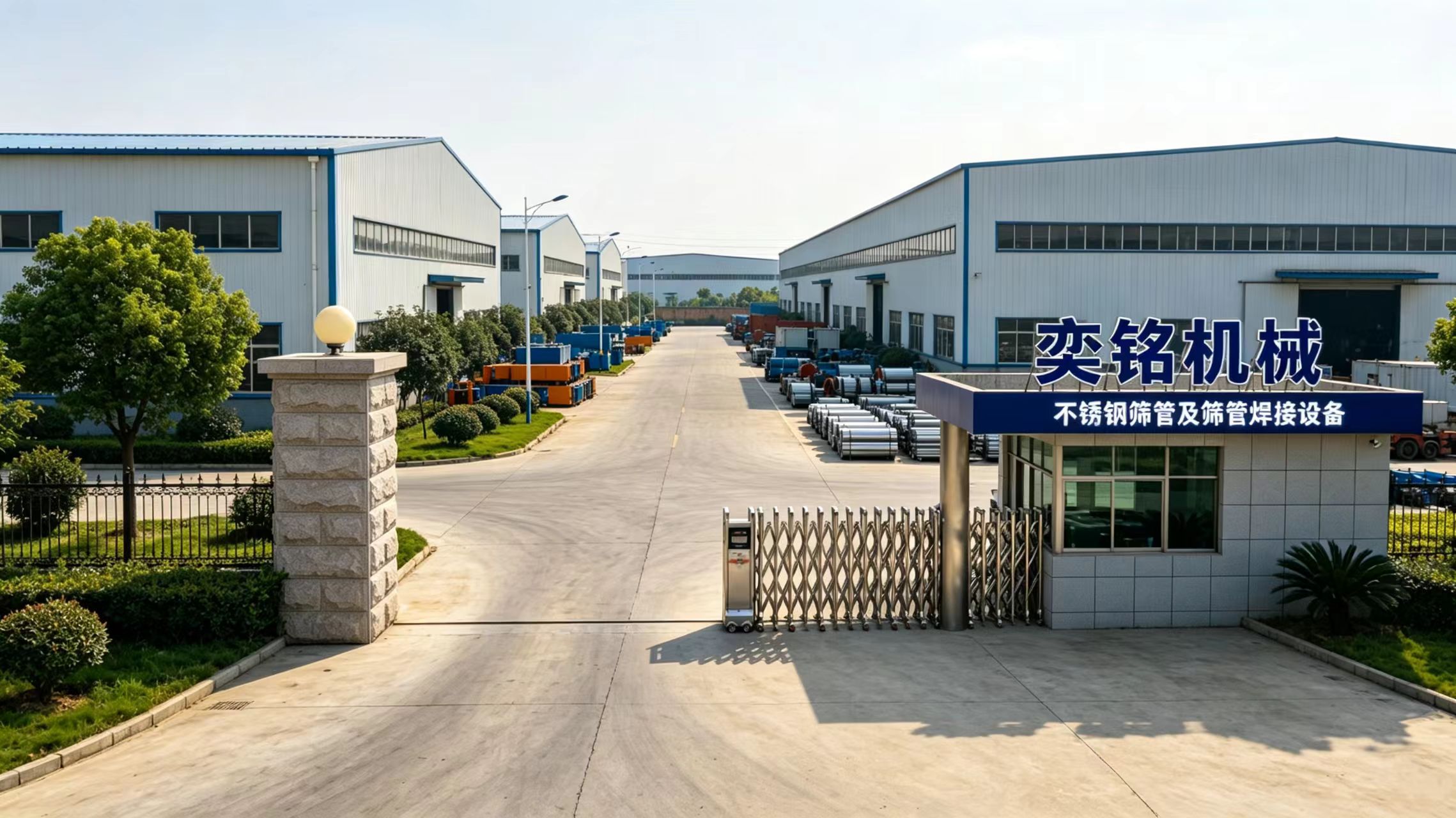

Yiming Machinery Factory

Screen Products

We produce all types of stainless steel wedge wire screens with premium raw materials & precision welding. Uniform slots, solid structure, custom specifications available

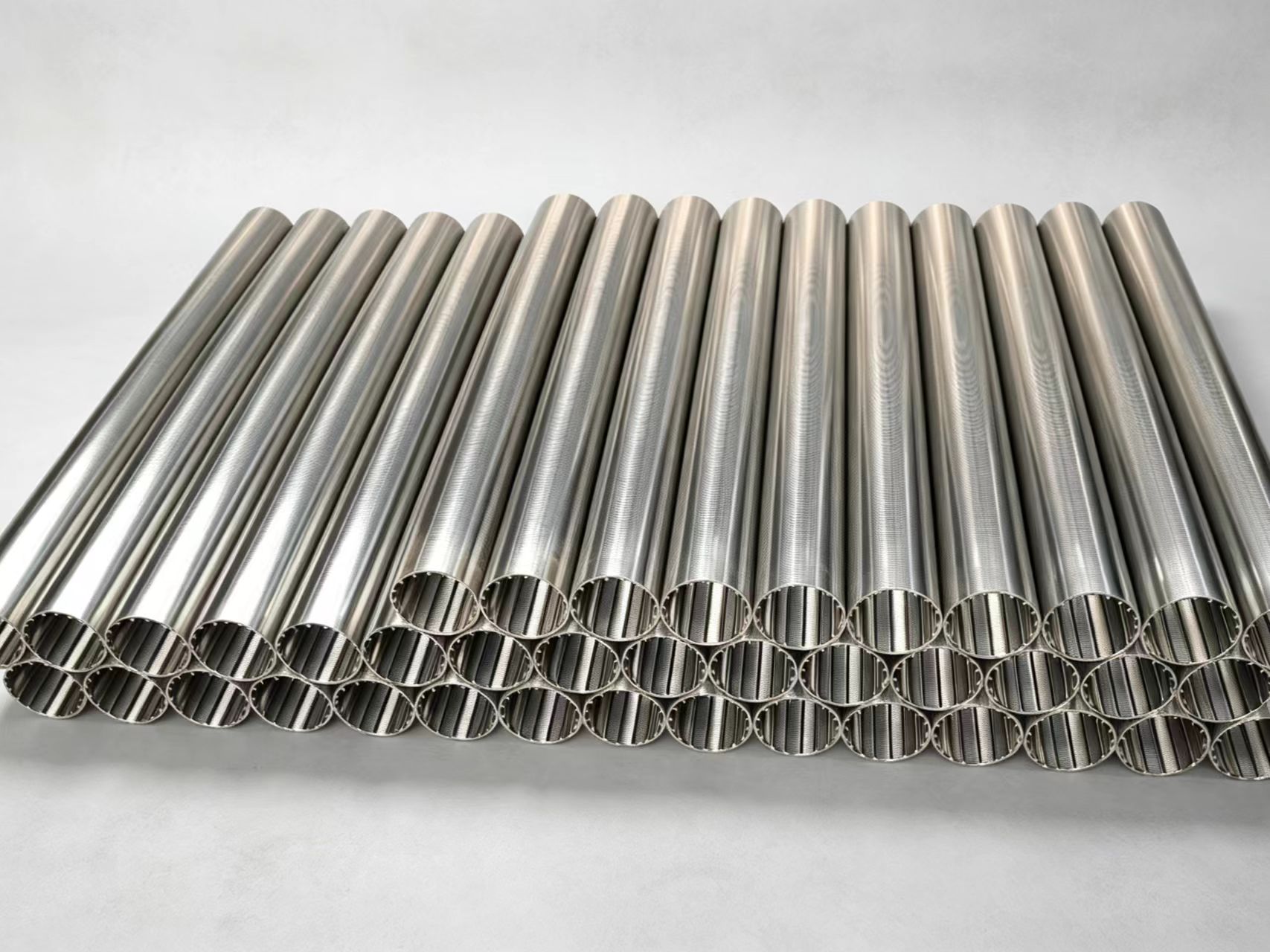

Wedge Wire Screen

Wedge Wire Screen

Also known as Johnson Screen. Made of V-shaped profile wire resistance-welded to support rods. Precise slot, high open area & anti-clogging, core element for filtration & separation.

  • Slot Range: 0.02mm - 40mm
  • Material: 304, 316L, Duplex steel etc.
  • Diameter: 25mm - 1200mm
Learn More

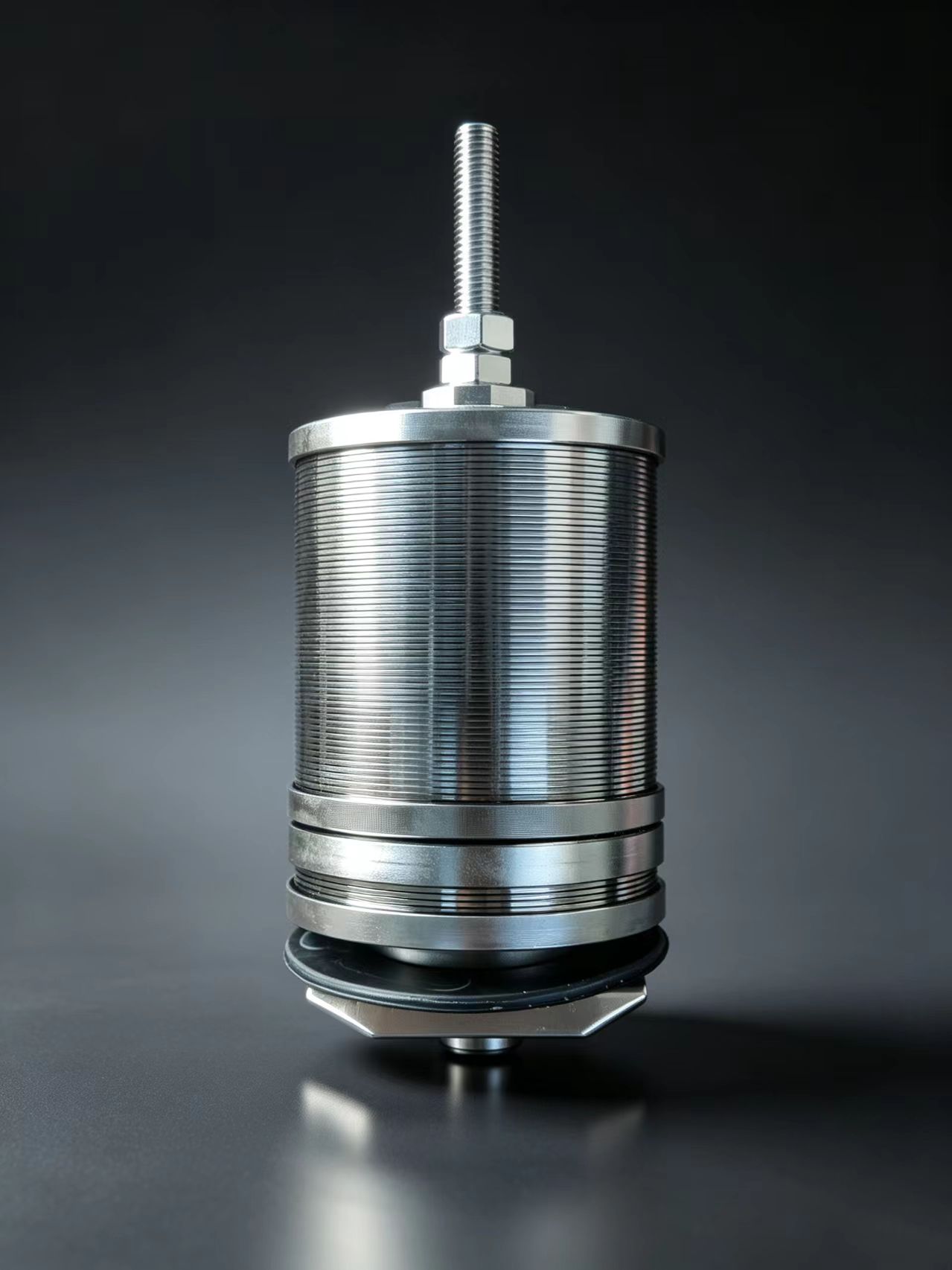

Wire Wrapped Water Well Screen

Wire Wrapped Water Well Screen

Widely used in water wells, geothermal wells, dewatering wells and groundwater development. Good water permeability, sand control performance, long service life & easy installation.

  • Slot Range: 0.02mm - 20mm
  • Material: Stainless steel, duplex steel & special alloys
  • Length: 1m - 6m Customizable
Learn More

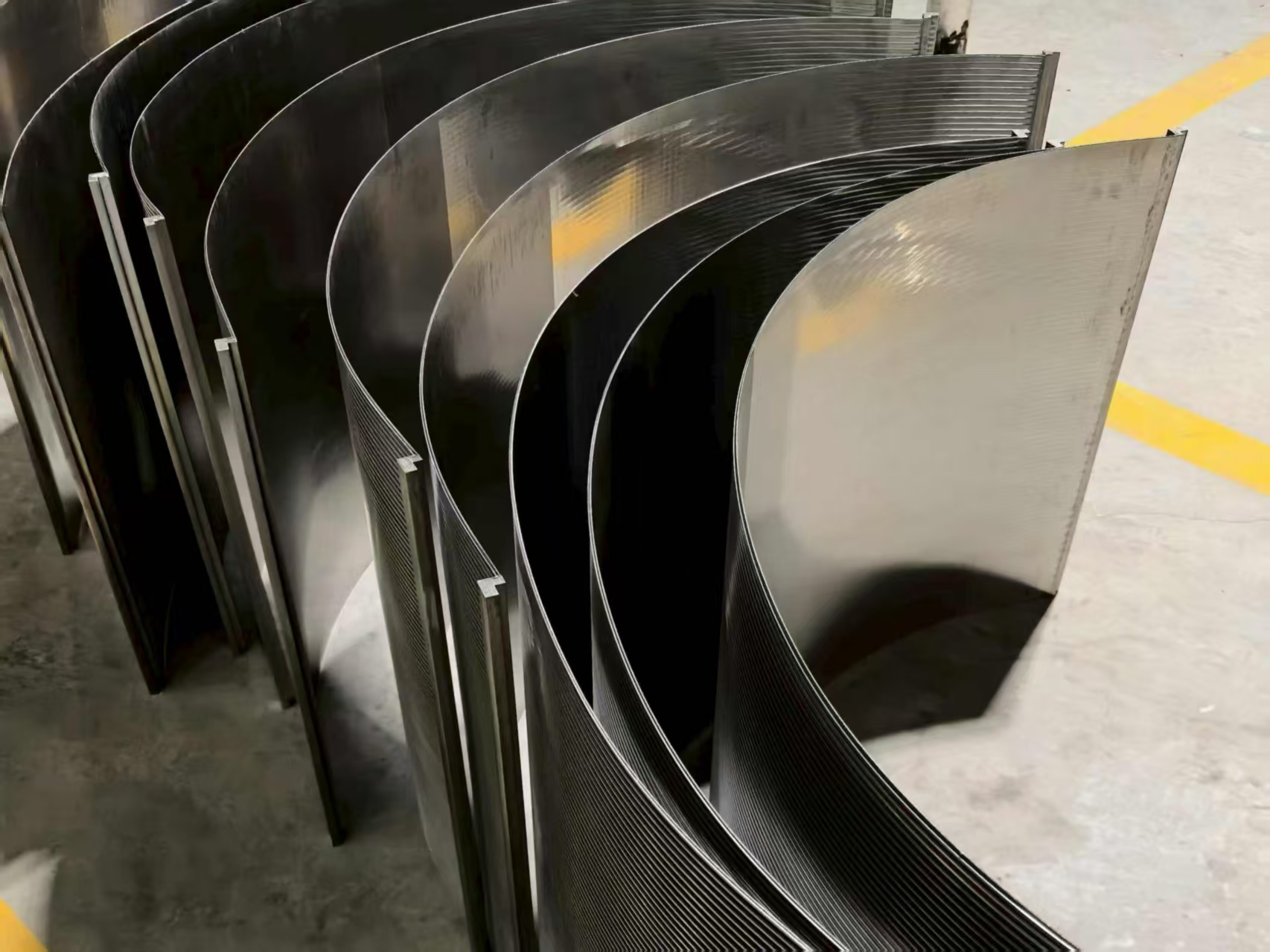

Stainless Screen Plate & Screen Basket

Screen Plate & Screen Basket

Flat wedge screen panels, curved sieve bends, conical baskets and more. Custom dimensions & frames available for dewatering, classification and filtration applications.

  • Slot Range: 0.05mm - 10mm
  • Shape: Flat, Curved, Conical etc.
  • Custom fabrication from drawings
Learn More

Custom screen products with more sizes & materials available

Get Custom Solution

Wedge Wire Screen Welding Machines

Self-developed wedge wire screen welding machines & Johnson screen welding equipment. Stable operation, high welding precision, reliable equipment for screen manufacturers

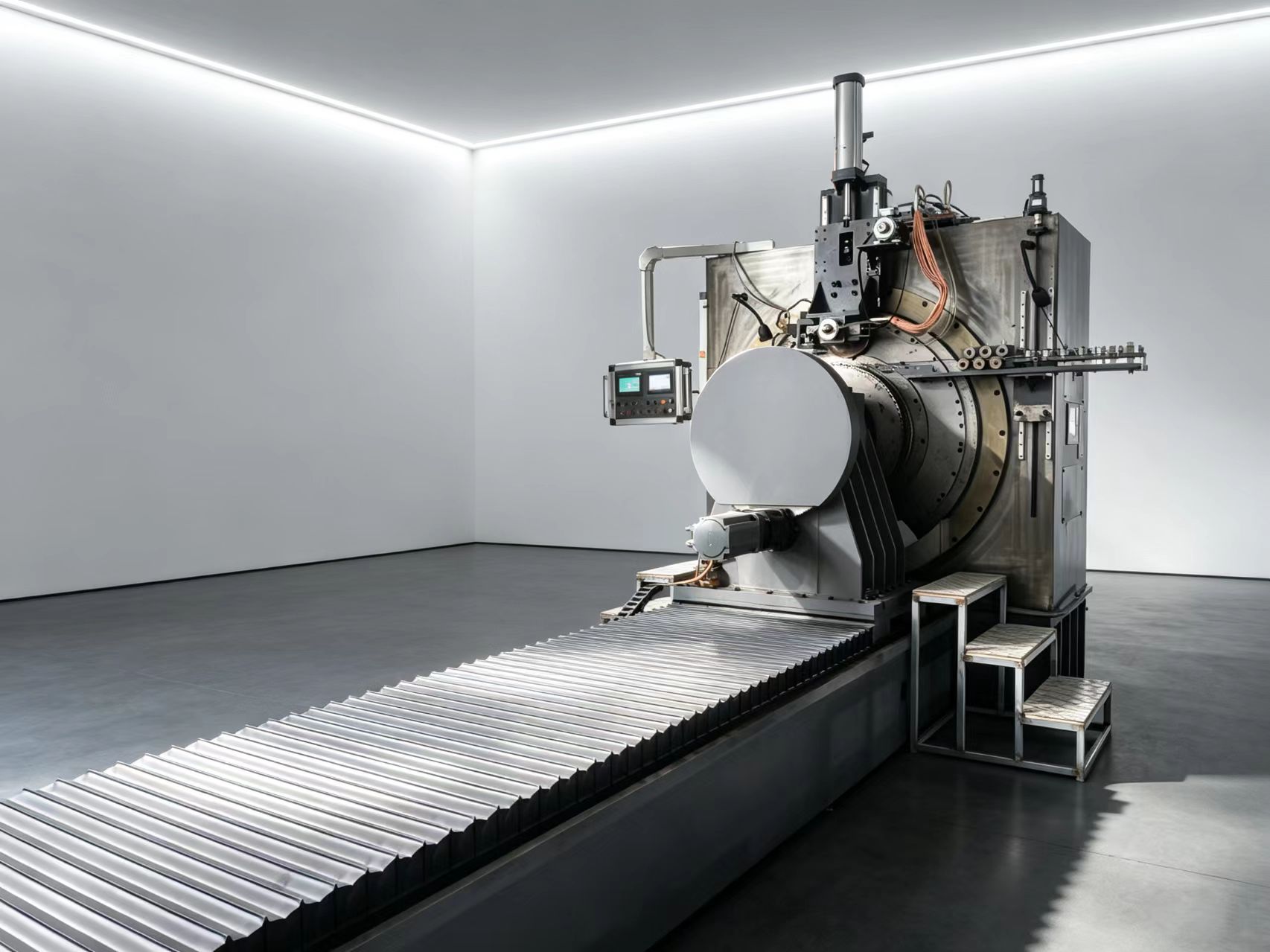

Wedge Wire Screen Welding Machine

Automatic Wedge Wire Screen Welding Machine

Yiming Machinery’s self-developed automatic wedge wire screen welder adopts resistance welding technology for continuous high-speed welding of profile wire and support rods. Equipped with precise slot control system, finished screens feature uniform slots and solid welds, the core equipment for Johnson screen production.

High Precision Welding

Slot tolerance ±0.01mm, uniform & firm welding points, high welding strength

High Automation

PLC control system, easy parameter setup, simple operation & labor saving

Wide Size Range

Produce screen tubes OD 25mm-1200mm, customizable length

Full Technical Support

Machine installation, commissioning, operator training & after-sales service

Inquire Machine Details
Machine Technical Parameters
Item Parameter Range Remark
Screen Tube OD φ25mm - φ1200mm Larger sizes available on request
Welding Slot Range 0.02mm - 40mm Digital control, continuously adjustable
Welding Speed 1r - 99r / min Adjustable by tube diameter & slot size
Applicable Wire Wedge wire, round wire Stainless steel, carbon steel etc.
Control System PLC + Touch Screen Parameter storage, one-click recall

Application Fields

Yiming screens & welding machines are widely used across multiple industries for filtration, separation and dewatering under various working conditions

Water Treatment

Water purification & wastewater treatment

Petrochemical

Refining & oilfield water injection

Food & Beverage

Brewing & juice filtration

Mining & Coal

Washing, dewatering & classification

Agricultural Irrigation

Water well & drip irrigation filtration

Machinery

Filter equipment supporting parts

Custom Service Process

Professional full service from requirement discussion to finished delivery to meet your specifications

01

Requirement Discussion

Confirm working condition, material & dimension

02

Solution Design

Technical team provides custom proposal

03

Manufacturing

Precise production with full QC

04

Quality Inspection

Strict test to guarantee quality

05

Delivery & After-sales

Logistics & technical support

Contact Us

Welcome to inquire custom screen products or welding machine details. Yiming Machinery is ready to serve you.

Contact Information

Company Address

Xinxiang, China

Sales Hotline

tel:+8615836098593

(WhatsApp & WeChat available)

Email

502624978@qq.com

Working Hours

Mon - Sat 8:00 - 18:00

Note: All screens are custom-made. Please provide tube diameter, slot size, material, length and quantity, we will send detailed quotation.
